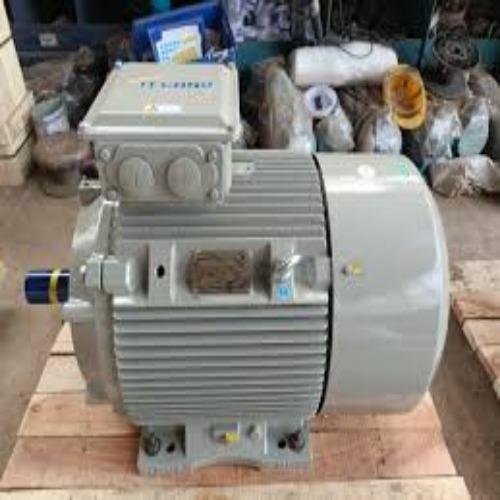

Techno Motors

Name: Techno Motors
Brand: EMCO ENGINEERS
Price: 60000.0 INR
Availability: InStock

Price 60000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Techno Motors Specification

Cooling Method
Fan Cooled

Torque
95 Nm

Power Rating
15 kW

Rated Voltage
415 V

Features
Sturdy Construction, Low Maintenance, High Performance

Current Type
AC

Poles Number
4

Noise Level
Low

Horse Power
15 HP

Rated Frequency
50 Hz

Bearing Type
Double Sealed Ball Bearings

Efficacy
IE2 (High Efficiency)

Starting Type
DOL

Standard
IS 325

Ambient Temperature
-15C to +40C

Voltage
415 V

Pressure
Standard Atmospheric

Sealed Type
TEFC (Totally Enclosed Fan Cooled)

Motor Type
Induction Motor

Product Type
Electric Motor

Output Power
15 kW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed

Phase
Three Phase

Speed
1440 RPM

Power
15 HP

Color
Grey

Dimension (L*W*H)
650 x 380 x 400 mm

Weight
85 kg

Shaft Diameter
38 mm

Mounting Type
Foot Mounted

IP Rating
IP55

Application
Industrial Usage, Pumps, Compressors, Conveyors

Frame Size
160 M

Insulation Class
Class F

Enclosure
TEFC

Duty Cycle
S1 (Continuous)

Techno Motors About

General Purpose Motor, ODP, 200 HP, 3600 RPM, 230/460V ...

A 200 hp motor is a large industrial three-phase electric induction motor (roughly 150 kW) used for heavy-duty machinery like pumps, compressors, and conveyors. It typically features cast iron construction, IP55 dust/water protection, and operates at 415V460

Engineered for Endurance and Efficiency

This induction motor combines a Class F insulation system, double sealed ball bearings, and a TEFC enclosure to deliver long-lasting performance even under harsh conditions. Optimized for a duty cycle of S1 (continuous), it withstands temperatures from -15C to +40C, ensuring reliability across a range of environments. The motor's IE2 efficiency designation guarantees reduced energy consumption for cost-effective operation.

Versatile Applications and Easy Installation

Suitable for a range of industrial systems-such as pumps, conveyors, and compressors-this motor integrates easily into existing machinery with its standard foot-mounted configuration and 650 x 380 x 400 mm dimensions. Its 38 mm shaft diameter and 4-pole construction ensure compatibility with numerous industrial setups, supporting seamless replacement or upgrades.

Reliable Safety and Low Maintenance

The IP55-rated enclosure provides significant protection against dust and water, while the totally enclosed fan-cooled (TEFC) design prolongs equipment life by ensuring optimal cooling. Thanks to double sealed bearings and robust construction, the motor offers low maintenance needs, reducing downtime and long-term upkeep costs for frequent users.

FAQ's of Techno Motors:

Q: How does the TEFC (Totally Enclosed Fan Cooled) design benefit industrial operations?

A: The TEFC design shields the motor's internal parts from dust, water, and contaminants, significantly prolonging its lifespan and ensuring dependable operation in challenging industrial environments. This makes it ideal for locations where exposure to debris or moisture is common.

Q: What applications are suitable for this motor model?

A: This Techno Motors induction motor is engineered for a variety of industrial uses, including driving pumps, compressors, and conveyor systems, due to its 15 kW output, sturdy build, and reliable duty cycle for continuous operation.

Q: Where should this motor be installed for optimal performance?

A: For best results, install the motor in well-ventilated indoor or covered outdoor locations that fall within the specified ambient temperature range of -15C to +40C and under standard atmospheric pressure. The motor's IP55 protection allows for some exposure to dust and water, enhancing site flexibility.

Q: What is the process for starting and operating this induction motor?

A: This motor is designed for DOL (Direct-On-Line) starting, which means it can be connected directly to the power supply and will start operating immediately upon switching on. Ensure correct three-phase wiring and standard safety procedures during installation for optimal performance.

Q: How does the IE2 (high efficiency) rating impact benefits and operational costs?

A: The IE2 high efficiency standard reduces energy usage, resulting in lower electricity costs and supporting environmental sustainability. Over extended use, this leads to significant savings and improved cost-efficiency in every industrial operation.

Q: When should the motor be maintained, and what are its maintenance requirements?

A: Routine maintenance is minimal, thanks to double sealed ball bearings and robust construction. Periodic inspection for dust buildup, bearing condition, and cooling effectiveness is recommended to ensure uninterrupted, high-performance operation.
